Salient Features
-
- Proven S-valve technology
- i-Pump: Robust electronic operation controls and management with manual override
- On screen display of parameters like Pumping hours, concrete output, hydraulic oil temperature, fault diagnosis matrix, strokes counter and engine speed
- Suitable for high pressure pumping
- Suitable for indian ambient conditions
- The most compact pump in it’s class
- Sturdy undercarriage and outrigger
- Specially designed hopper to facilitate free flow of concrete for better suction
- Radio remote control upto 100 mtrs
- Modular hydraulic and diesel tank
- Shaft mounted gear box no alignment required
- Safety grill open alarm system
- Hopper and canopy light for night working
- Bend axle for safety of pumping cylinder and tie rod

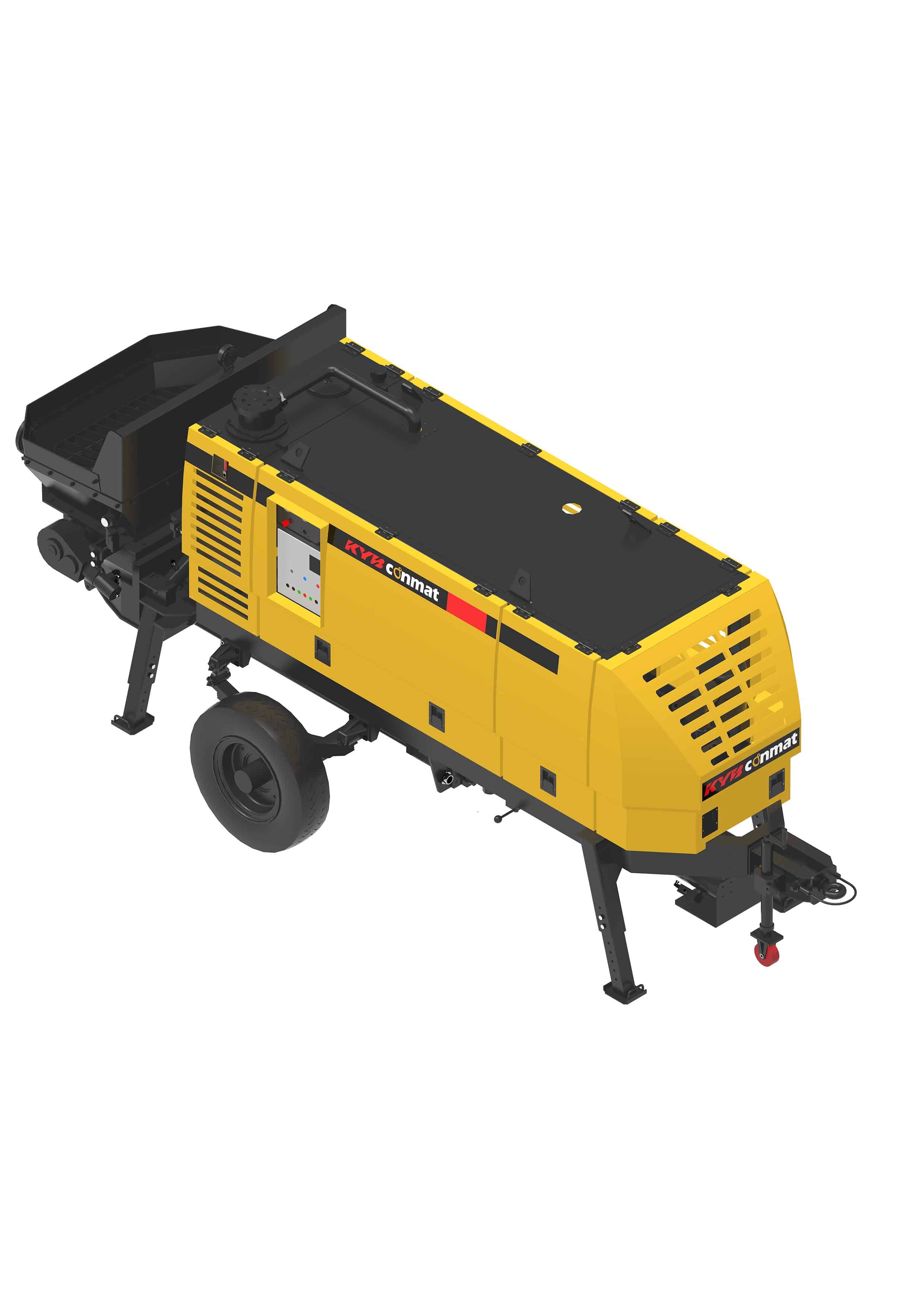

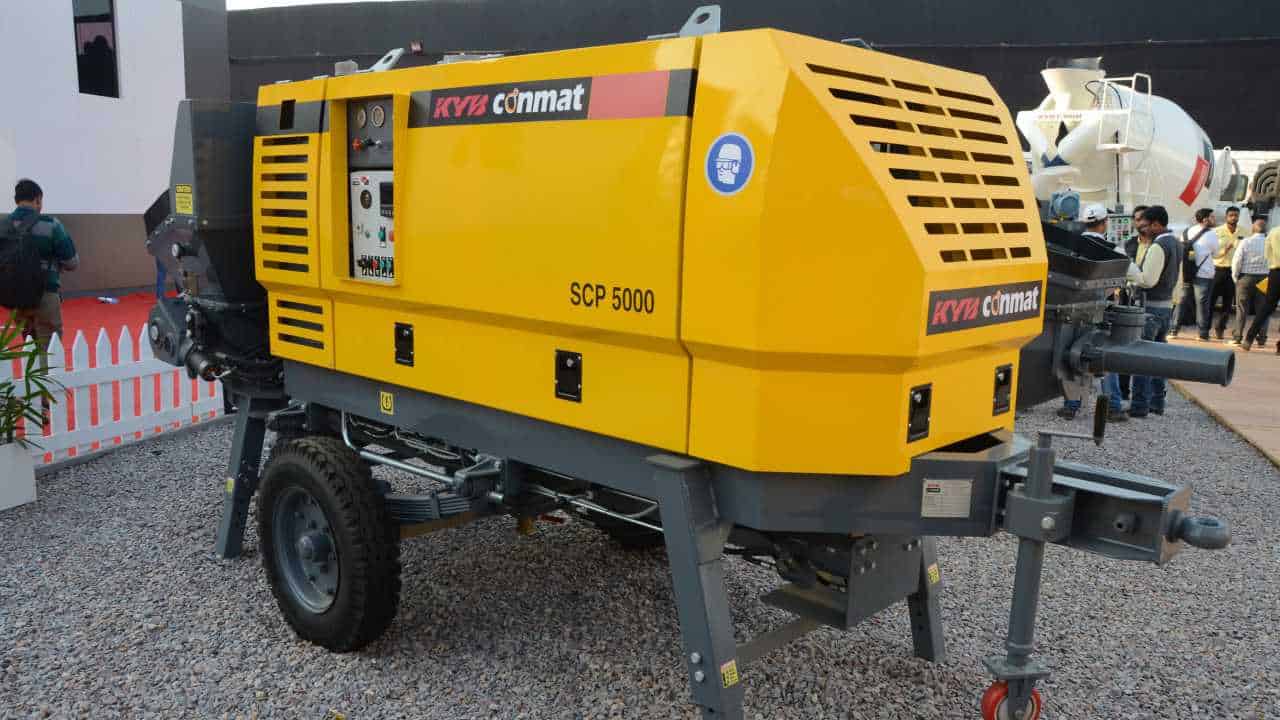

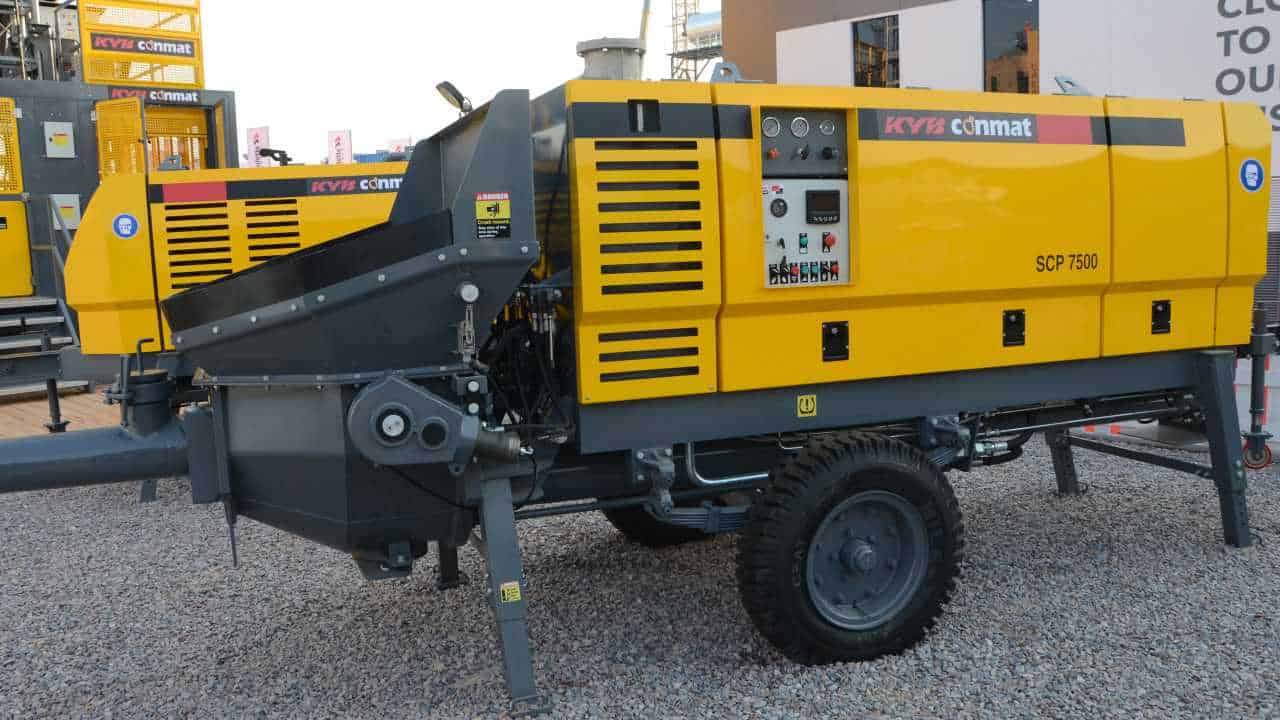

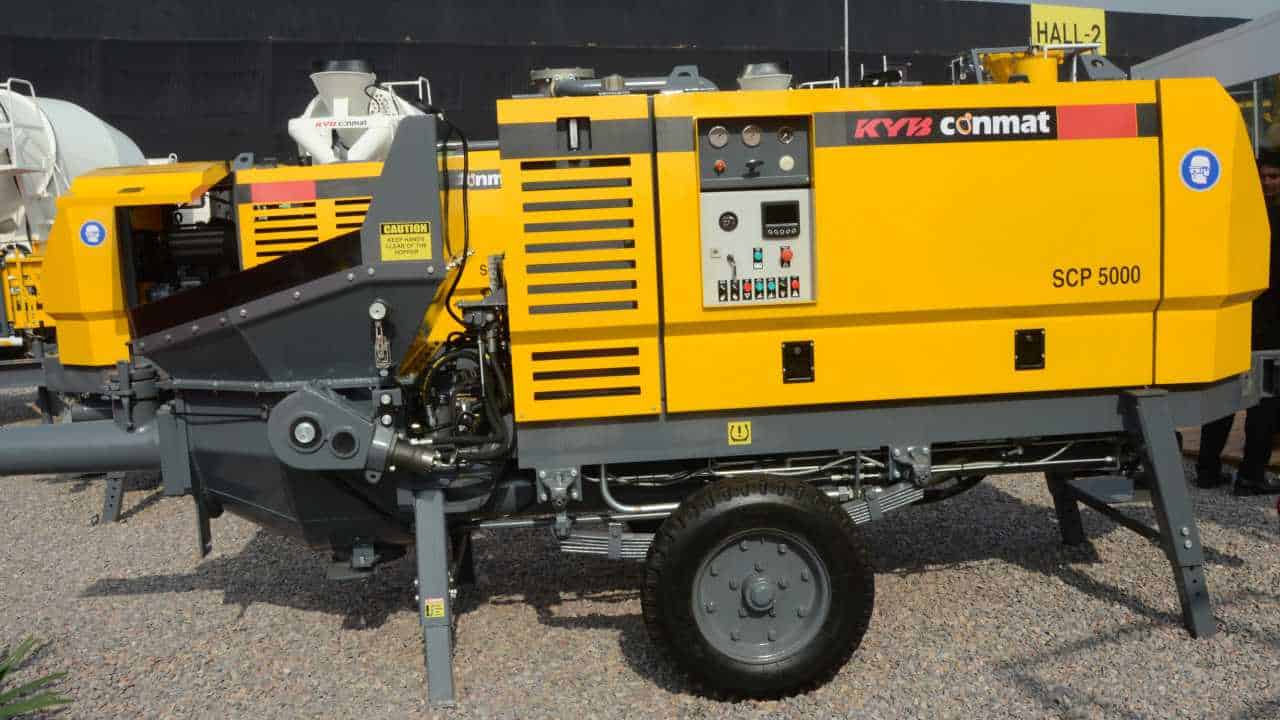

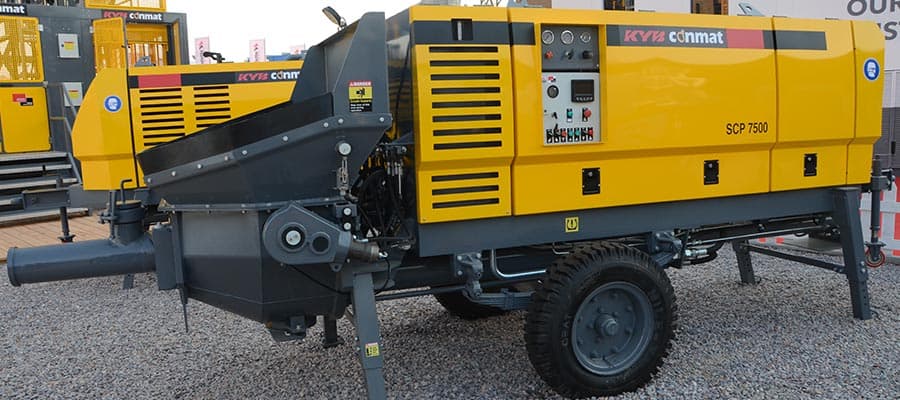

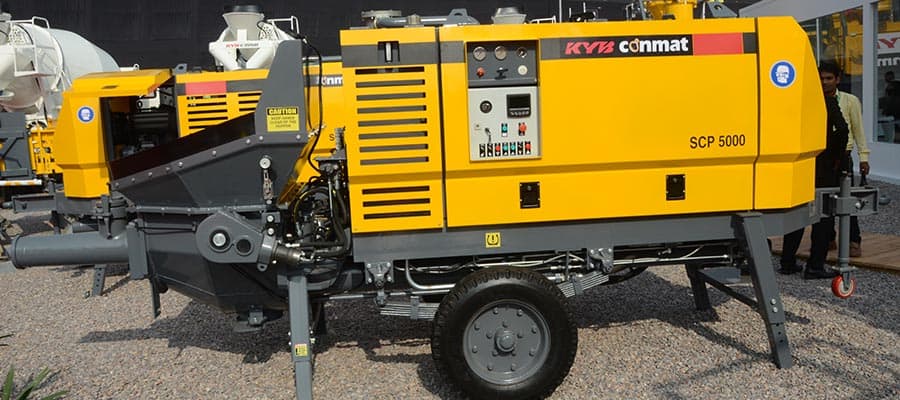

No. | Description | SCP 5000 | SCP 7500 | |
1 | Concrete Output (max. theoretical) | m3/h | 49 | 72 |
2 | Concrete Pressure (max. theoretical) | bar | 57 / 85* | 71 / 106* |
3 | Delivery Cylinder Dia./Stroke | mm | 200 / 1000 | 200 / 1400 |
4 | Strokes/ Minute (max. theoretical) | 26 / 17* | 27 / 18* | |
5 | Control System | HMI | HMI | |
6 | Drive Unit Power | kw | 49 | 74 |
7 | Make | Kirloskar | Kirloskar | |
8 | Hopper Capacity | liters | 625 | 625 |
9 | Transfer Tube | S-TUBE | S-TUBE | |
10 | Weight | kg | 3450 | 4250 |
*HIGH PRESSURE PUMPING
