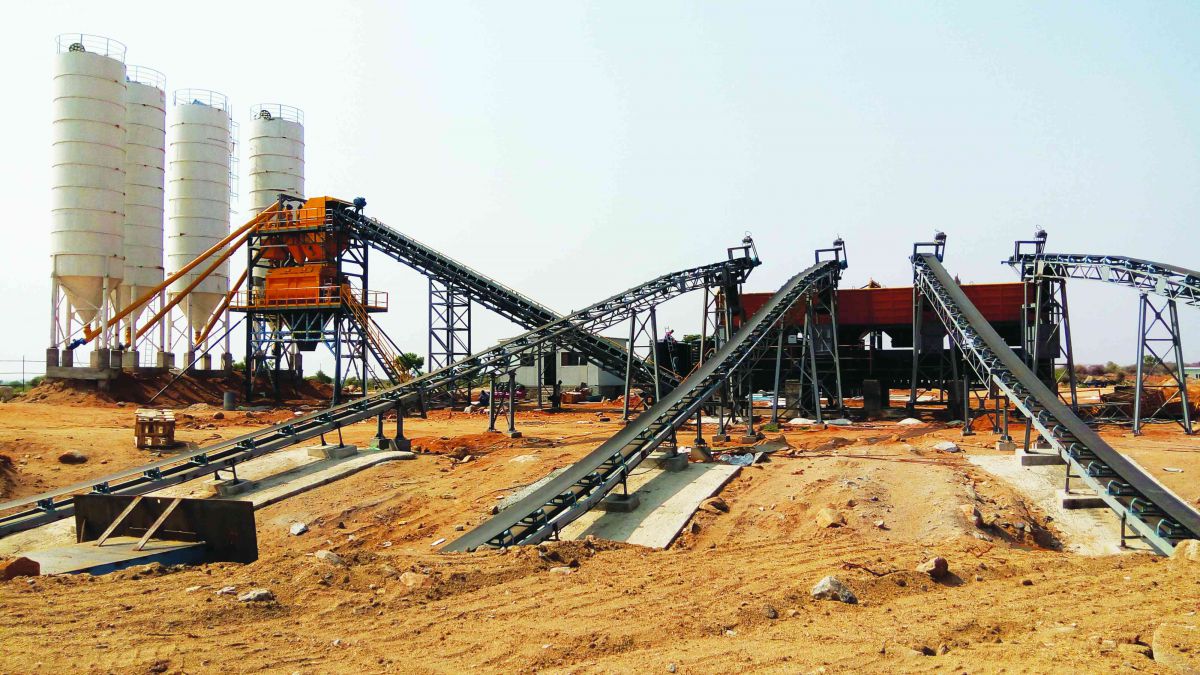

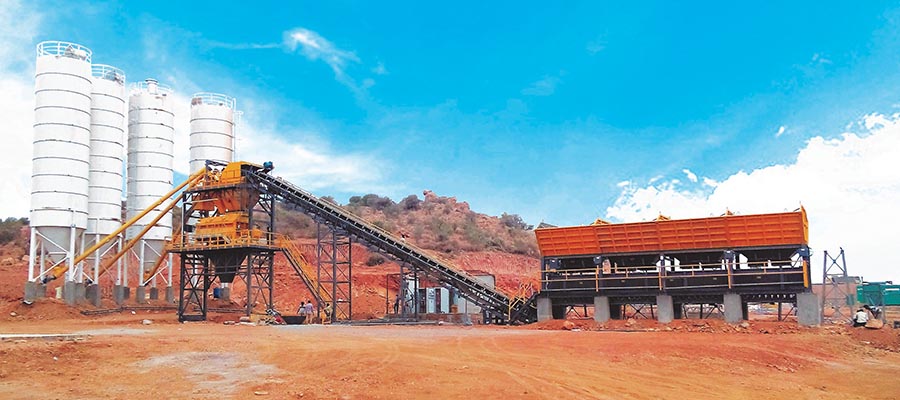

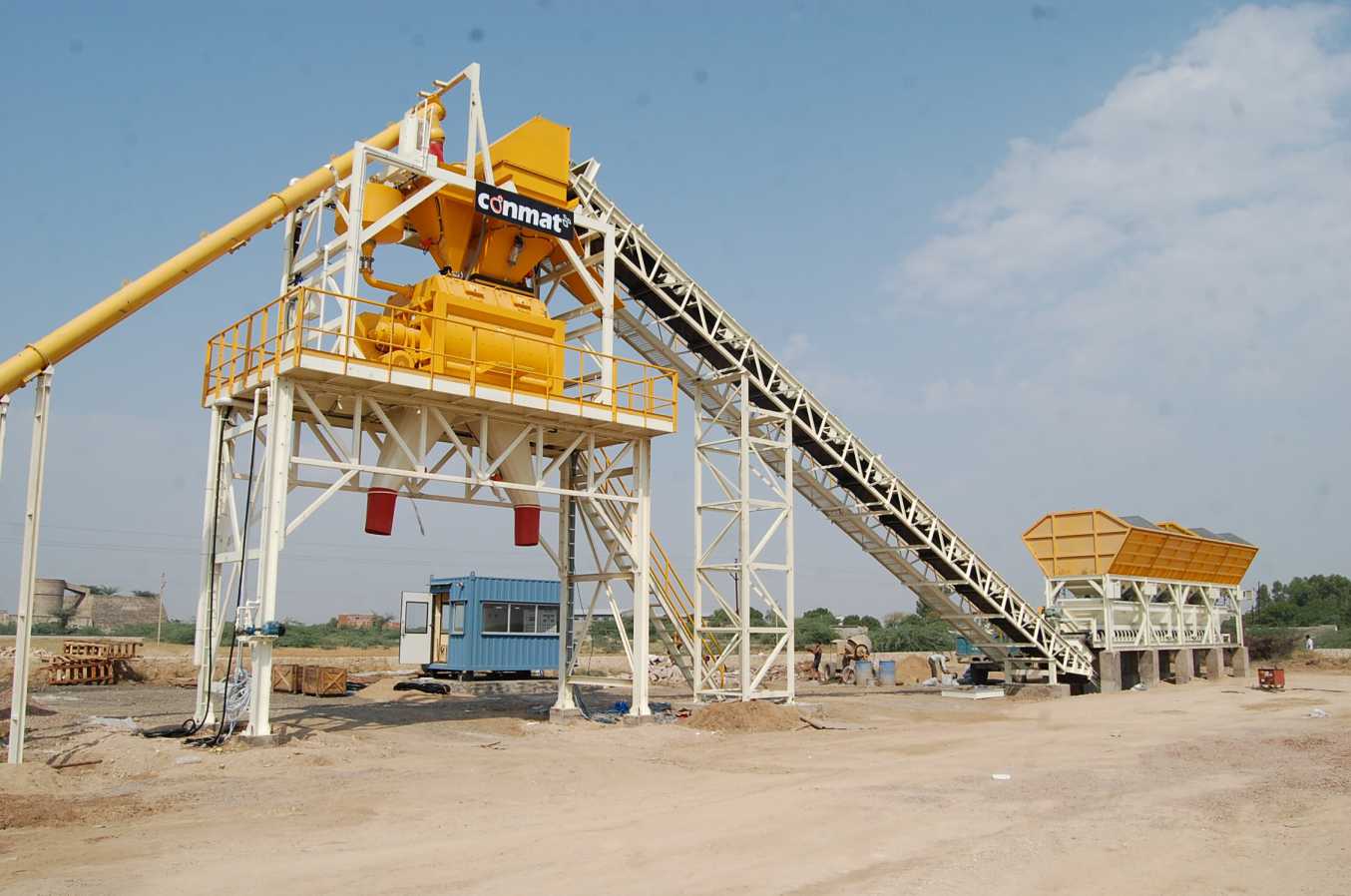

Mobility with Performance of Stationary Plant
The most striking feature of KYB-Conmat Batching Plant is faster & easy erection / dismantling at site. It has all welded frame structure & comes fully assembled from the factory in three parts. It can be installed at the site with an ordinary “Pick & Carry” crane available locally. Requires only few hours for installation.
A Low Maintenance Plant
Engineered to perfection, KYB-Conmat Batching Plant requires minimum maintenance, thus assuring continuous performance. We have invested heavily in state-of-the-art designing & manufacturing techniques to make the equipment, which is not only efficient but also perform in tough conditions.
Compact Overall Size
Sleek designed KYB-Conmat Batching Plant requires very less installation area & minimum civil works and hence good saving for the customers.
Controls
Intelligent PLC based Automatic Controls with SCADA.
Salient Features
-
- Fast & homogeneous mixing through world’s latest TWIN SHAFT MIXER technology
- Rugged and compact design of Mixer makes it suitable for all concrete applications
- Mobility with performance of stationary plant
- Requires minimum maintenance thus assuring continuous performance in tough conditions
- Higher accuracy because of higher capacity and more no. of load cells
- Minimum installation area & minimum civil work
- Committed towards confirmed concrete output
- Fully automatic PLC control system with SCADA for inventory management and different report generation
- Fault and errors diagnosis system
 |

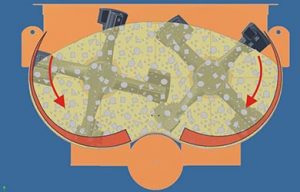

Long Wear Life Inherent Design of the mixer reduces wear of the tiles as compared to Pan and Planetary mixers, as only 30% of the tiles are subjected to wear. High quality of wear tiles ensures even longer life. |
 |

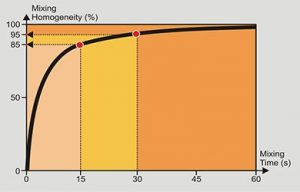

Fast Mixing 85% of the maximum mix quality i.e high compressive strength, constant slump etc. is achieved after only 15 sec. and after another 15 sec., 95% homogeneity is achieved. |
 |

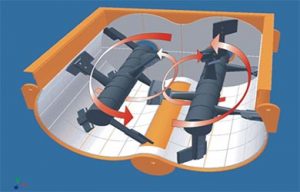

Better Mixing Quality All the particles achieve a three dimensional motion, thanks to intelligent placement of the mixing arms that creates a high degree of turbulence in the mixture. |
 |

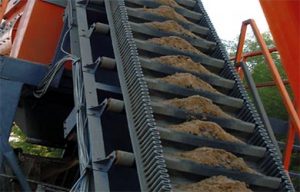

Deep Bucket Conveyor Makes Plant compact & has low maintenance. |
 |

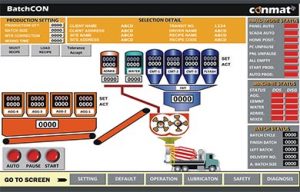

Advanced Control System Fully automatic PLC control system with SCADA for inventory management and different report generation. Any types of faults and errors will be diagnosed by the control system. |
 |

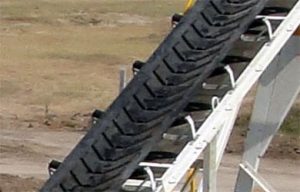

Chevron Belt Conveyor Low replacement cost |
| No. | Details | CRP 900 IL |
| 1 | Output Theoretical | 90 cu. mtr./hr |
| 2 | In Line Bin | 4 / 5 / 6 |
| 3 | Charging Conveyor | Chevron Belt Conveyor |
| 4 | Cement / Filler Weighing System | Yes |
| 5 | Water Weighing System | Yes |
| 6 | Admixture Weighing System | Yes |
| 7 | Mixer | Twin Shaft |
| 8 | Maximum Size of Aggregate | 80 mm |
| 9 | Water Sprinkling & Gravity Discharge System | Yes |
| 10 | Air Compressor | Yes |
| 11 | Screw Conveyor for Cement | Yes |
| 12 | Cement Filling Hopper | - |
| 13 | Control System | Automatic |
| 14 | Discharge Height | 4.1 mtr. |
| No. | Details | CRP 1200 IL |
| 1 | Output Theoretical | 120 cu. mtr./hr |
| 2 | In Line Bin | 4 / 5 / 6 |
| 3 | Charging Conveyor | Chevron Belt Conveyor |
| 4 | Cement / Filler Weighing System | Yes |
| 5 | Water Weighing System | Yes |
| 6 | Admixture Weighing System | Yes |
| 7 | Mixer | Twin Shaft |
| 8 | Maximum Size of Aggregate | 80 mm |
| 9 | Water Sprinkling & Gravity Discharge System | Yes |
| 10 | Air Compressor | Yes |
| 11 | Screw Conveyor for Cement | Yes |
| 12 | Cement Filling Hopper | - |
| 13 | Control System | Automatic |
| 14 | Discharge Height | 4.1 mtr. |
| No. | Details | CRP 1600 IL |
| 1 | Output Theoretical | 160 cu. mtr./hr |
| 2 | In Line Bin | 4 / 5 / 6 |
| 3 | Charging Conveyor | Chevron Belt Conveyor |
| 4 | Cement / Filler Weighing System | Yes |
| 5 | Water Weighing System | Yes |
| 6 | Admixture Weighing System | Yes |
| 7 | Mixer | Twin Shaft |
| 8 | Maximum Size of Aggregate | 80 mm |
| 9 | Water Sprinkling & Gravity Discharge System | Yes |
| 10 | Air Compressor | Yes |
| 11 | Screw Conveyor for Cement | Yes |
| 12 | Cement Filling Hopper | - |
| 13 | Control System | Automatic |
| 14 | Discharge Height | 4.1 mtr. |
| No. | Details | CRP 2000 IL |
| 1 | Output Theoretical | 200 cu. mtr./hr |
| 2 | In Line Bin | 4 / 5 / 6 |
| 3 | Charging Conveyor | Chevron Belt Conveyor |
| 4 | Cement / Filler Weighing System | Yes |
| 5 | Water Weighing System | Yes |
| 6 | Admixture Weighing System | Yes |
| 7 | Mixer | Twin Shaft |
| 8 | Maximum Size of Aggregate | 80 mm |
| 9 | Water Sprinkling & Gravity Discharge System | Yes |
| 10 | Air Compressor | Yes |
| 11 | Screw Conveyor for Cement | Yes |
| 12 | Cement Filling Hopper | - |
| 13 | Control System | Automatic |
| 14 | Discharge Height | 4.1 mtr. |
| No. | Details | CRP 2400 IL |
| 1 | Output Theoretical | 240 cu. mtr./hr |
| 2 | In Line Bin | 4 / 5 / 6 |
| 3 | Charging Conveyor | Chevron Belt Conveyor |
| 4 | Cement / Filler Weighing System | Yes |
| 5 | Water Weighing System | Yes |
| 6 | Admixture Weighing System | Yes |
| 7 | Mixer | Twin Shaft |
| 8 | Maximum Size of Aggregate | 80 mm |
| 9 | Water Sprinkling & Gravity Discharge System | Yes |
| 10 | Air Compressor | Yes |
| 11 | Screw Conveyor for Cement | Yes |
| 12 | Cement Filling Hopper | - |
| 13 | Control System | Automatic |
| 14 | Discharge Height | 4.1 mtr. |
