Salient Features
-
- Accurate, fast & simple to distribute uniform concrete at desired level.
- Advance energy efficient electric drive system with step-less speed controls.
- In-Built safety feature.
- Equipped with the receiving hopper to feed concrete directly from concrete mixer/TM.
- Hi-tech, user friendly electric controls for belt drive & diverter car plough movements. Diverter car plough divert the concrete uniformly between the slabs to be paved.
- Low initial investment in generator set & low operation / running cost. Hence better pay-back on investment.
- Easy on-site maintenance. No hassle of routine problems like leakage & busting of hydraulic pipes, frequent changing of oil and filters. Hence minimum spares inventory cost.
- Adaptability for up gradation to suit to different application.
- Optimum use of power for improved overall efficiency of the machine.

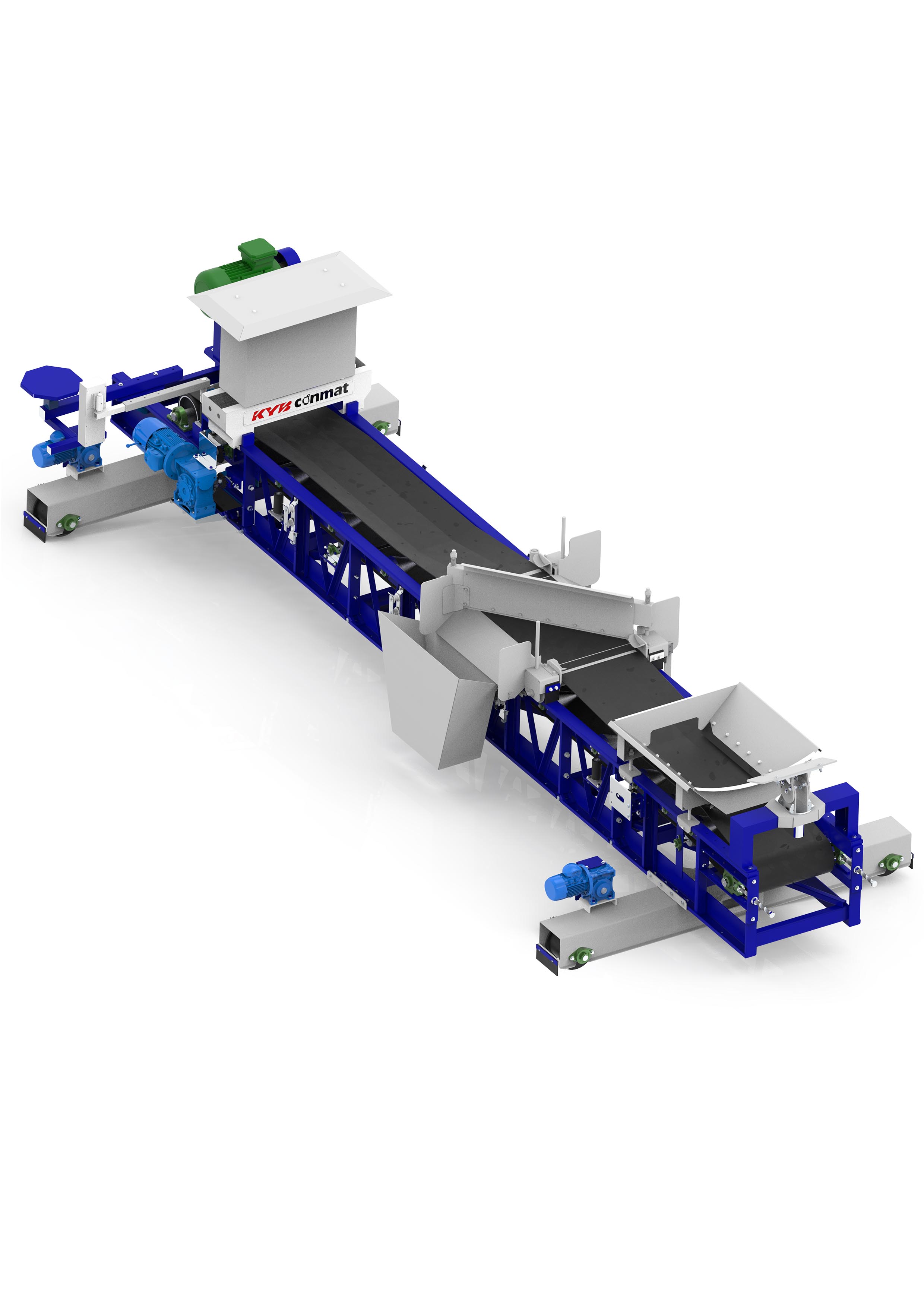

| No. | Description | SDC 60 | SDC 60 HD |
| 1 | Interchangeable pin connected frame assembly in various sections. | Y | Y (HD) |
| 2 | Drive end section with belt drive pulley with geared motor & diverter car motor assembly. | Y | Y |
| 3 | Idler end section assembly with tail pulley. | Y | Y |
| 4 | Diverter car assembly with counter weight. | Y | Y |
| 5 | Discharge chute assembly. | Y | Y |
| 6 | Receiving hopper assembly. | Y | Y |
| 7 | Electric driven drive bogies. | Y | Y |
| 8 | Electrical panel board with cables. | Y | Y |
| 9 | Remote attachment with swivelling assembly. | Y | Y |
| 10 | Feeder support assembly. | Y | Y |
| 11 | Roller chain assembly as per machine length. | Y | Y |
| 12 | Plain Conveyor belt assembly as per machine. | Y | Y |
